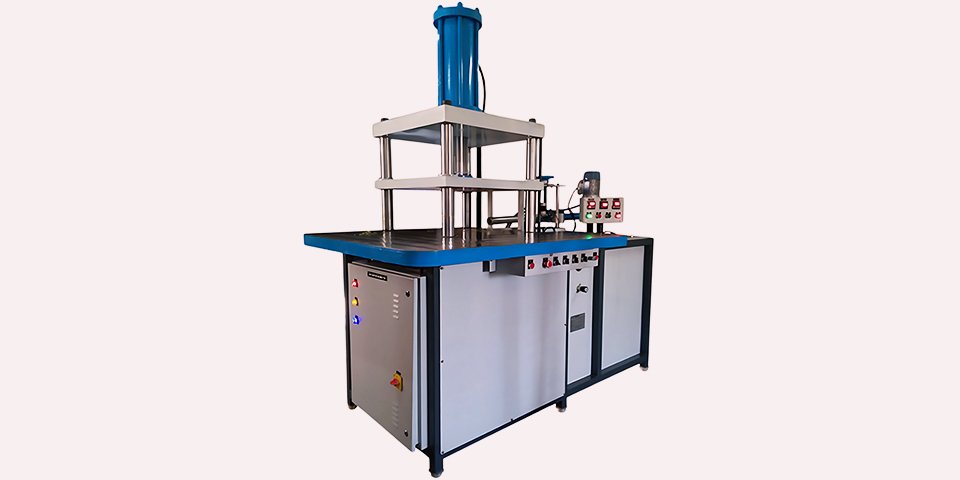

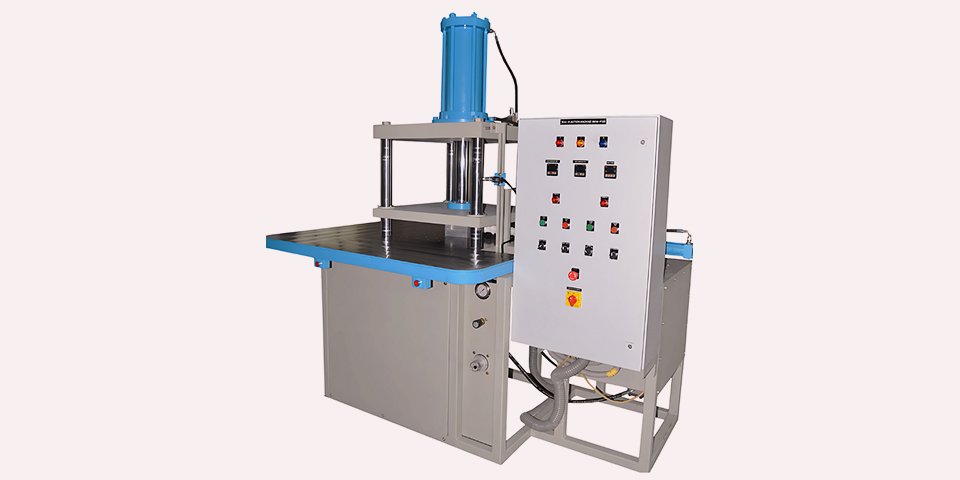

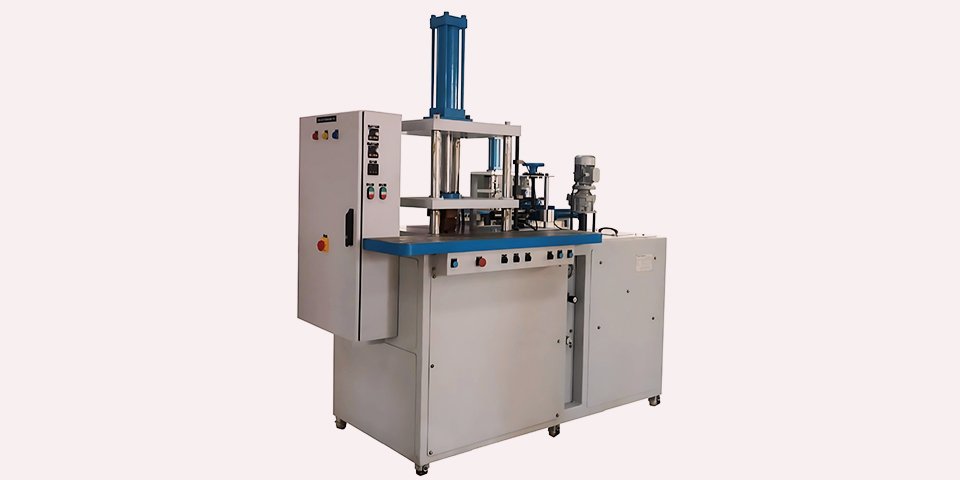

WIM Series – Precision Wax Injection Systems for Reliable Pattern Production.
Incastt Machines’ WIM Series offers robust hydraulic and pneumatic wax injection systems designed for reliable, high-precision pattern production. Featuring sturdy 4-pillar construction and advanced controls, the machines ensure consistent output, fast cycle times, and flexibility across various die configurations—suitable for both small components and high-volume production
| Model | Clamp Force | Reservoir (L) | Shot Size | Shuttle Table | Automation Level |
|---|---|---|---|---|---|
| WI0101 | 12 Tons | 55 | 30,000 cc | No | Semi-Automatic |
| WI0201 | 25 Tons | 35 | 30,000 cc | Optional | Fully Automatic |
| WI0201 | 35 Tons | 56 | 30,000 cc | Optional | Fully Automatic |
| WI0801 | 100 Tons | 100 | 30,000 cc | Yes | Fully Automatic |
| WI1201 | 100 Tons | 100 | 30,000 cc | Yes | PLC Touchscreen |
| WI1301 | 100 Tons | 100 | 30,000 cc | Yes | PLC Touchscreen |
Key Features:
Precise Wax Control
Adjustable pressure, dwell time, and flow rate ensure consistent injection.
Large Shot Capacity
1,000–30,000 cc shot sizes with up to 100 L PID-controlled wax tanks
Powerful Clamping
12–100ton hydraulic clamping force supports various die sizes.
Automated Operation
PLC-controlled cycles enable smooth and efficient operation.
Dual-Axis Nozzle
X and Z axis adjustment ensures accurate nozzle positioning and wax flow.
Integrated Heating & Stirring
Maintains uniform wax temperature and consistency.
Cooling-Ready Platens
Water-cooling channels help reduce cycle times.
Operator-Friendly Design
Ergonomic controls and optional shuttle tables improve ease of use.
Built-in Safety
Dual-button start, emergency stop, and manual override ensure safe operation.
Flexible Options
Shuttle tables, pneumatic ejectors, and touchscreen controls available.
