| Model | Chamber Size (Dia × Depth) | Basket Size (mm) | Shell Height (mm) | Working Pressure |
|---|---|---|---|---|
| AC0401 | 750 × 1000 mm | 600 × 900 | 450 | 7 Kg/Sq.cm. Max |
| AC0502 | 1000 × 1200 mm | 820 × 1100 | 550 | 7 Kg/Sq.cm. Max |
| AC0601 | 1000 × 1200 mm | 820 × 1100 | 550 | 10 Kg/Sq.cm. Max |
| AC0701 | 1200mm x 1500mm | 1000 x 1400 | 10 Kg/Sq.cm. Max |
Download our document to see specific data of the service and how we work.
Let’s Start Work Together
Please feel free to contact us. We will get back to you with 1-2 business days. Or just call us now.
0821-428 2039, +91 97402 07101
sales@incastt.com
64/E7, Hootagalli Industrial Area, Mysore – 570018.

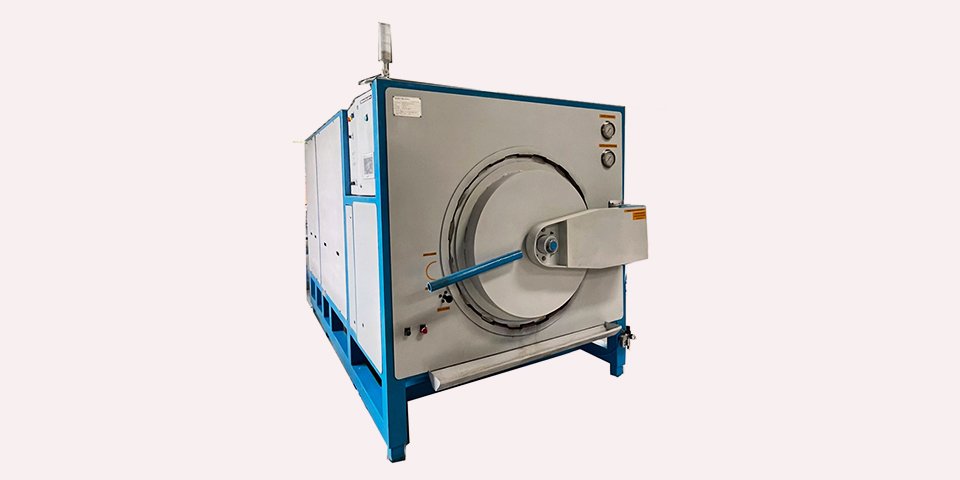

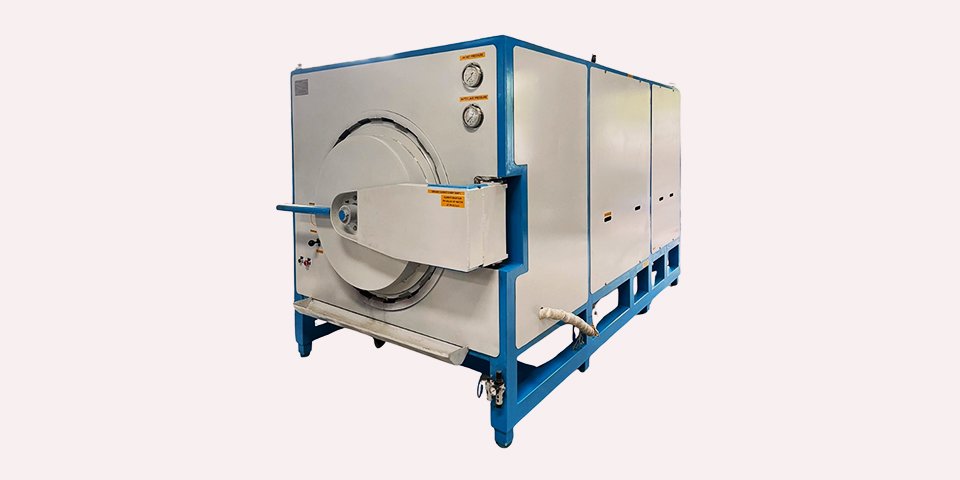

Engineered for the demanding requirements of precision investment casting, Incastt Machines’ Dewax Autoclaves deliver fast, reliable, and consistent dewaxing across a wide range of production requirements. Combining robust construction, rapid steam cycling, intelligent automation, and advanced safety features, the systems are designed to minimize shell cracking, improve cycle efficiency, and maximize casting yield. With proven thermal engineering and user-friendly operation, Incastt Dewax Autoclaves provide foundries with dependable performance and consistent results, cycle after cycle.
Key Features:
Durable Construction
Fabricated from IS 2062 boiler plate or SA516 Gr. 70 steel for high strength and thermal resistance.

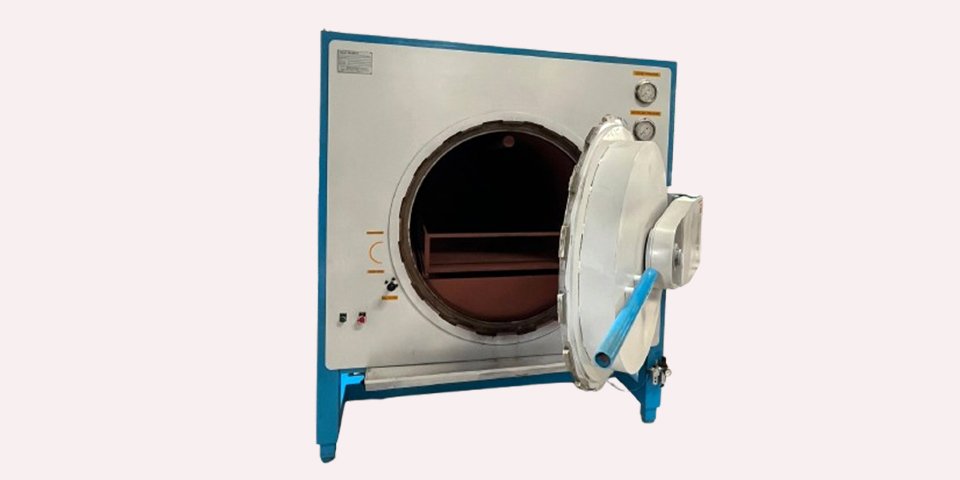

Quick Lock Door
15° hinged door with quick-lock mechanism enables fast and safe loading and unloading.
Rigid Base Frame
Heavy-duty MS structural frame ensures stability and durability.
Rapid Pressure Buildup
Achieves 6–7 bar pressure within approximately 15 seconds for efficient dewaxing.
Uniform Steam Injection
Optimized internal piping ensures even steam distribution and heat transfer.
High-Temperature Operation
Operating temperature ranges from 165°C to 180°C, depending on the model.
